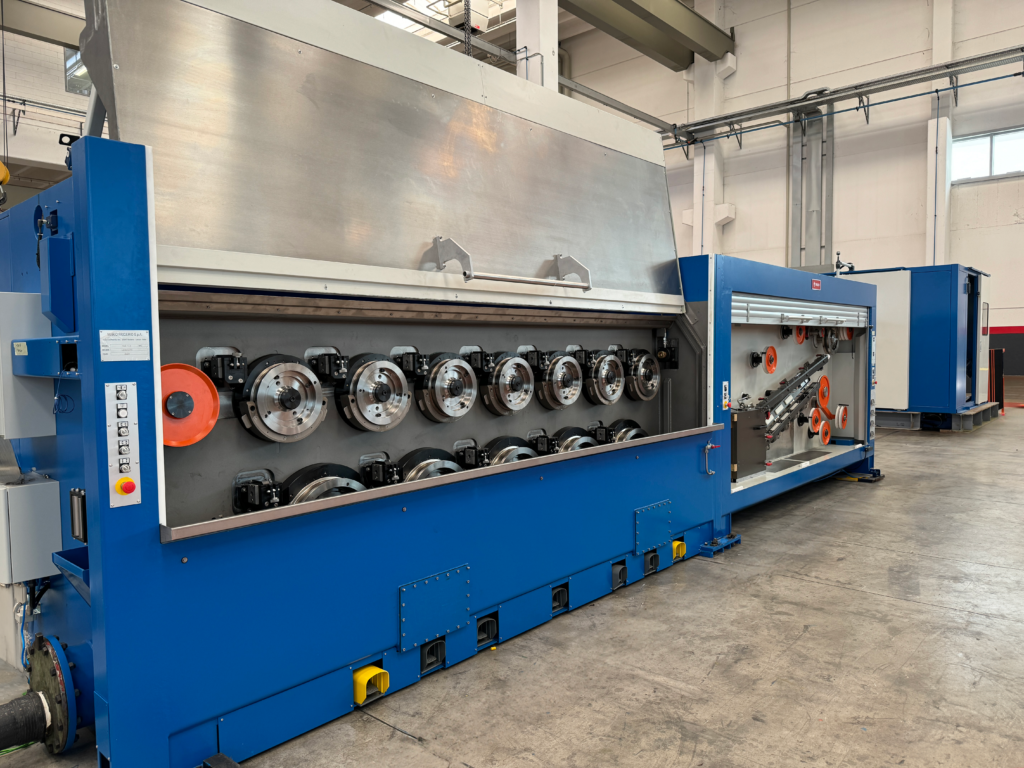

The Frigeco TS2 is a compact rod breakdown machine, ideal for producing copper and aluminum wire.
This line represents a key process for producing a wide range of cables, including battery cables, building wire, crane cables, data cables, solar photovoltaic cables, wind power cables, and low/medium/high voltage cables, among others.
Complementing the TS1, the TS2 boasts a compact design and exceptional efficiency, while ensuring high wire quality. Designed with a single wire configuration and 10 to 15 drawing blocks arranged on two levels, this rod breakdown machine can accommodate wire with diameters of 8.00 mm for copper and 9.50 mm for aluminum.
In 1992 MFL Group introduced into the wire and cable industry the first multi-motor rod breakdown machine with minimized slippage technology, and through a continuous innovation still distinguish itself for its performance, reliability and reduced maintenance.
To complement the rod breakdown machine and complete the drawing line, we offer annealers with the following specifications:
- Aluminum:
- max diameter: 5.0 mm
- max amperage: 6000 A
- productivity at 100% efficiency – 2.0 mm: 1220 kg/h; 2.6 mm: 1700 kg/h
- Copper:
- max diameter: 5.0 mm
- max amperage: 6000 A
- productivity at 100% efficiency – 2.0 mm: 3830 kg/h; 2.6 mm: 3840 kg/h
