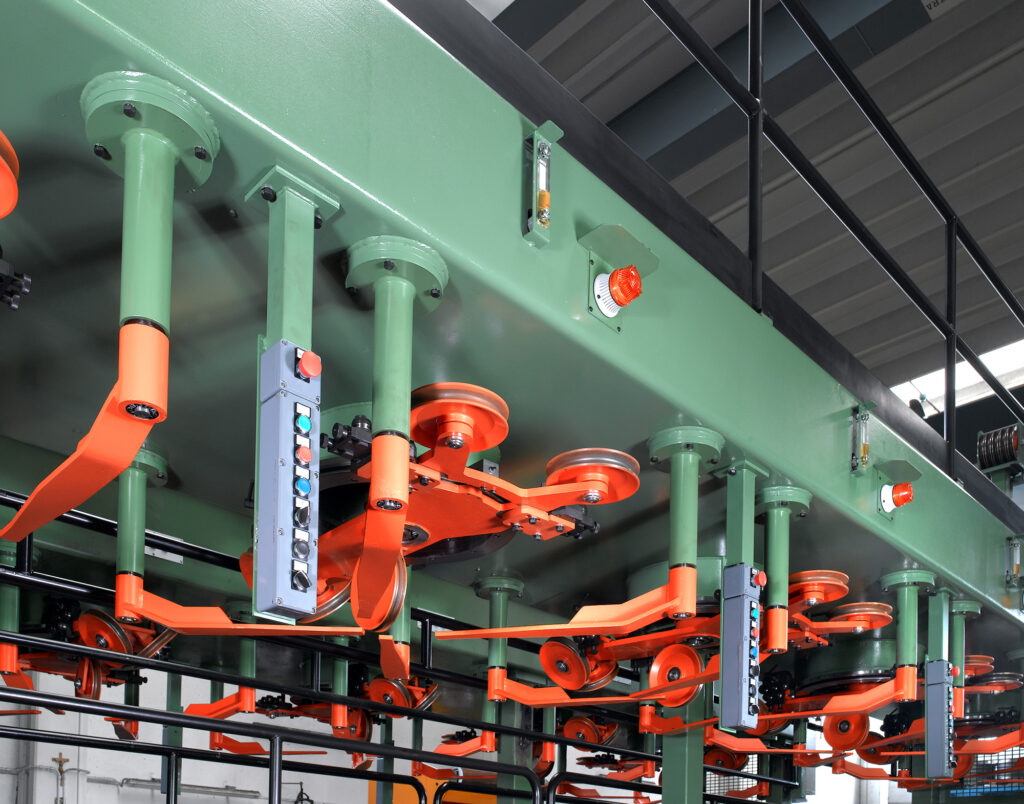

ASM/ADM SERIES

Wire & Rope
MULTI-POSITION COIL PAY-OFFS & TAKE-UPS
Description

The ASM/ADM series by Mario Frigerio are widely employed for the take-up of various wire types, ranging from annealed and galvanized low carbon wire to patented, phosphated, or galvanized high carbon wire. These versatile systems can also accommodate annealed stainless steel, making them suitable for hard-drawn low and high carbon wire as well.

The multi-position coil pay-offs & take ups are designed for thermal treatment and/or coating and/or cleaning operations.

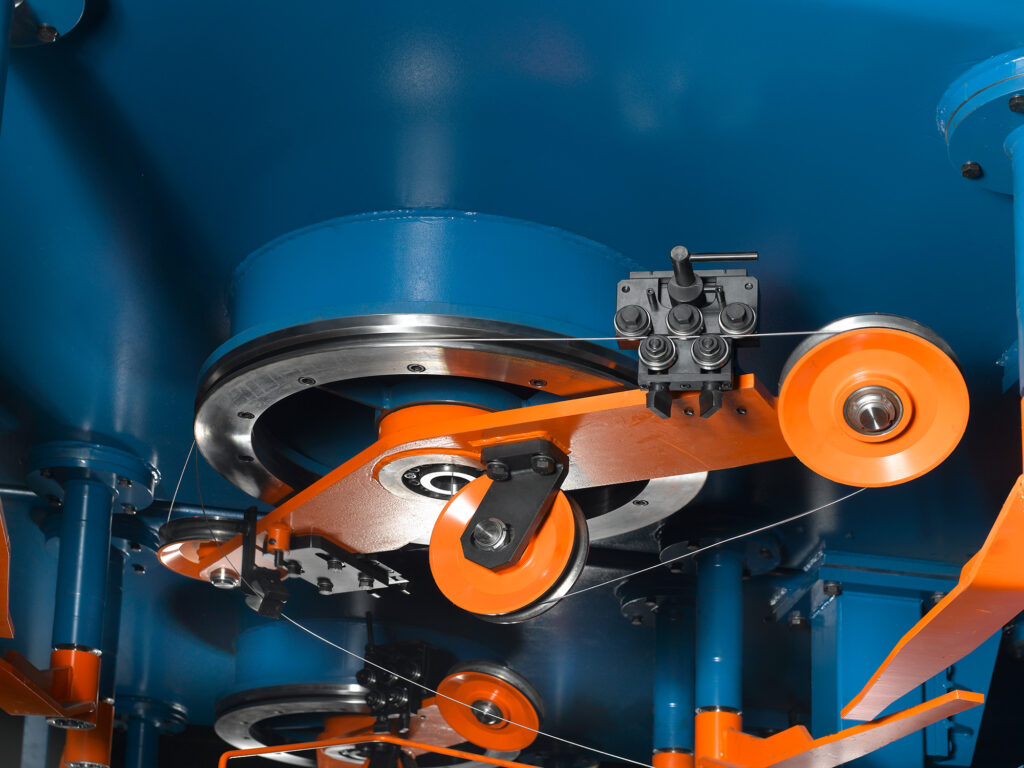

One of the standout advantages of this take-up method is its capability to create pattern-laid coils. This is accomplished by slowly rotating an inclined turntable that carries the wire carrier. The resulting pattern-laid packaging delivers substantial benefits, including increased coil weights and a remarkable reduction in snarls during subsequent pay-off processes.

Key Benefits
Available in single or double position setup
Offers dynamic or static solution
Vertical take-up
Patterning on a tilted rotating table to increase coil weight
Dynamic or static solution available
Double capstan version available for a wider range of wire
Capstan available from Ø 400 to 710 mm (static version) and from Ø 600 to 1200 mm (dynamic version)
Wire range Ø from 0.8 to 7.0 mm (static version) and from 1.5 to 18.0 mm (dynamic version)

Support form our Help Desk

Worldwide Distribution

Possibilities of upgrades
