WELD SERIES

Wire & Rope
ELECTROLYTIC PICKLING LINES FOR WELDED TUBES IN STAINLESS STEEL
Description

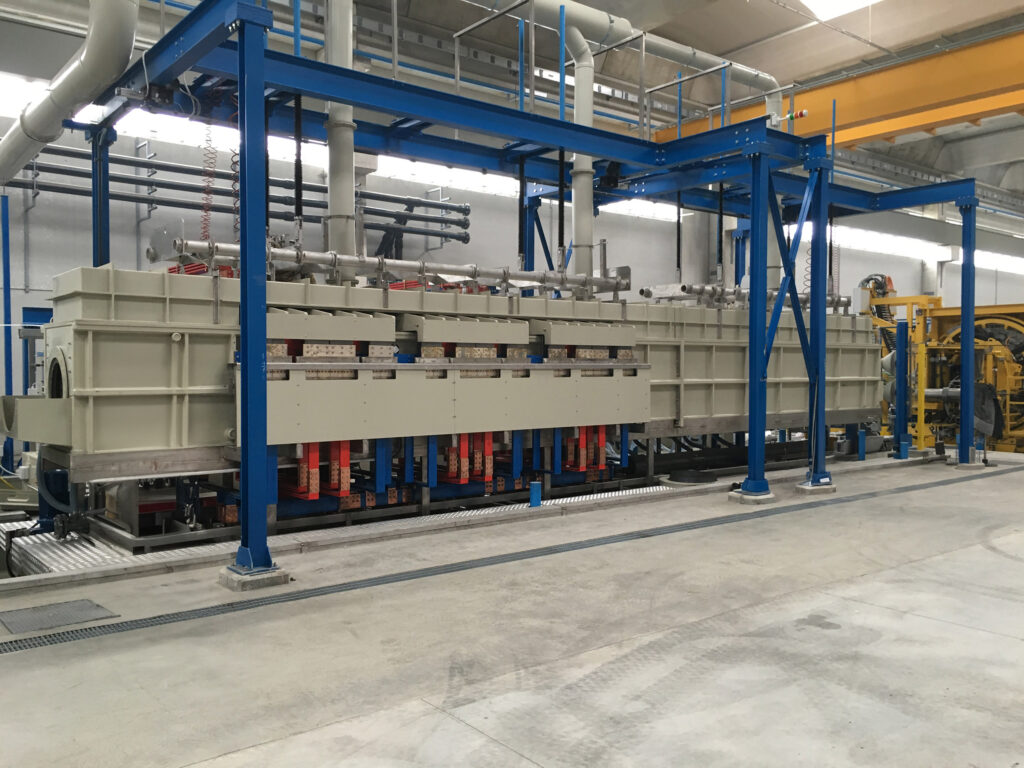

Utilizing our expertise in treating the surface of wire, we have developed plants for in-line pickling and passivating the surface of welded pipes in stainless steel, integrated into the tube manufacturing lines. The Coseco plant may consist of the sole electrolytic pickling and passivating section or be equipped with an additional station for ultrasonic cleaning, depending on customer requirements.

It consists in the following sections:
– Inlet group with adjustable height, allowing for regulating the level of the tube axis in function of the pipe diameter;

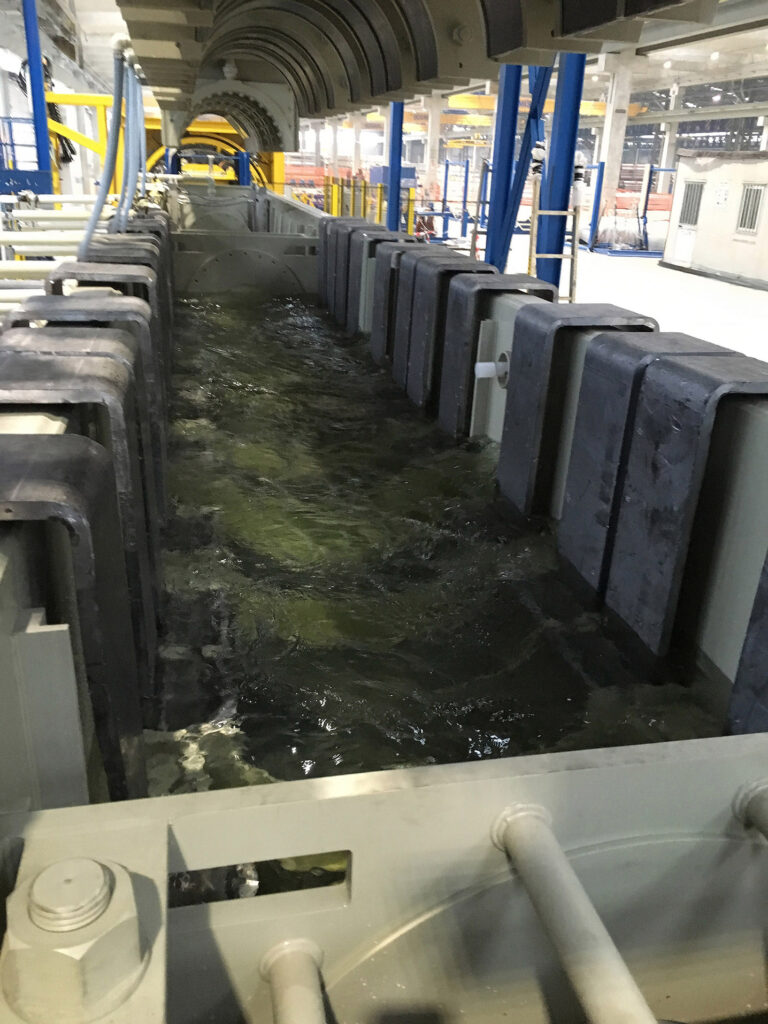

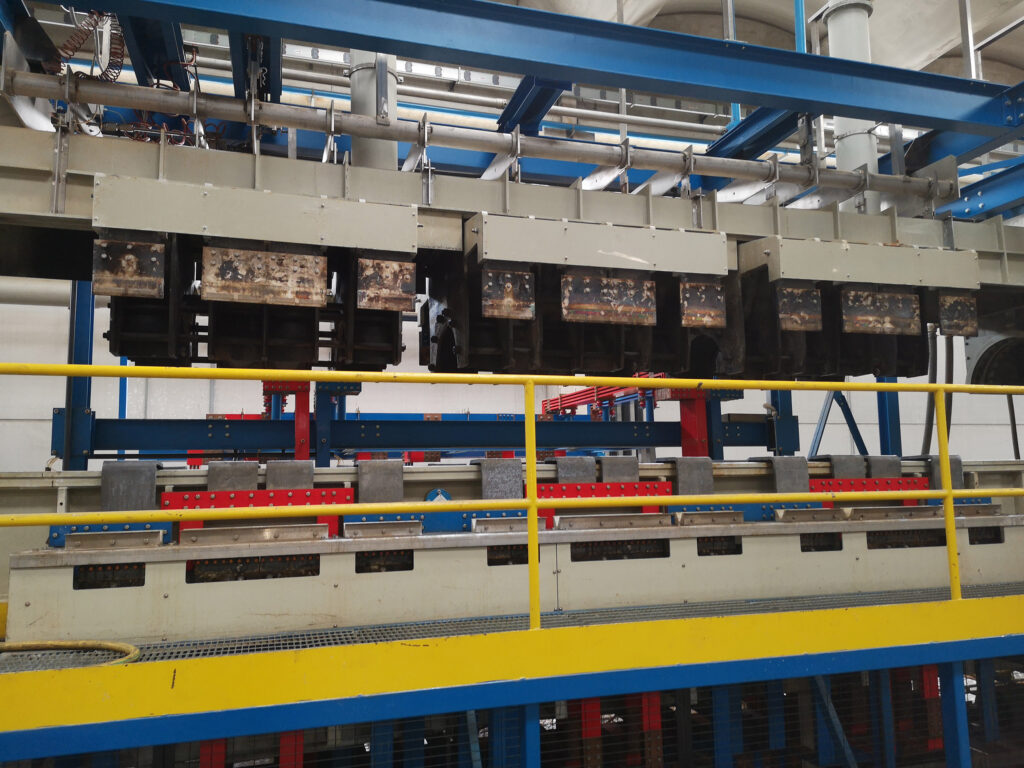

– Electrolytic pickling and passivating
– Two stage rinsing
– Ultrasonic cleaning (when required)
– Final drying with hot air

Key Benefits
High customization
Wide range of tube diameter (8 - 603 mm across the entire range)
Turn-key solution, ready to be connected to the customer’s power net, water, and compressed air supply, as well as to the central acid tank
Minimization of the manual handling of hazardous materials
Improved productivity
Suitable also for in-line annealed tubes
Same line for different diameters

Support form our Help Desk

Worldwide Distribution

Possibilities of upgrades
